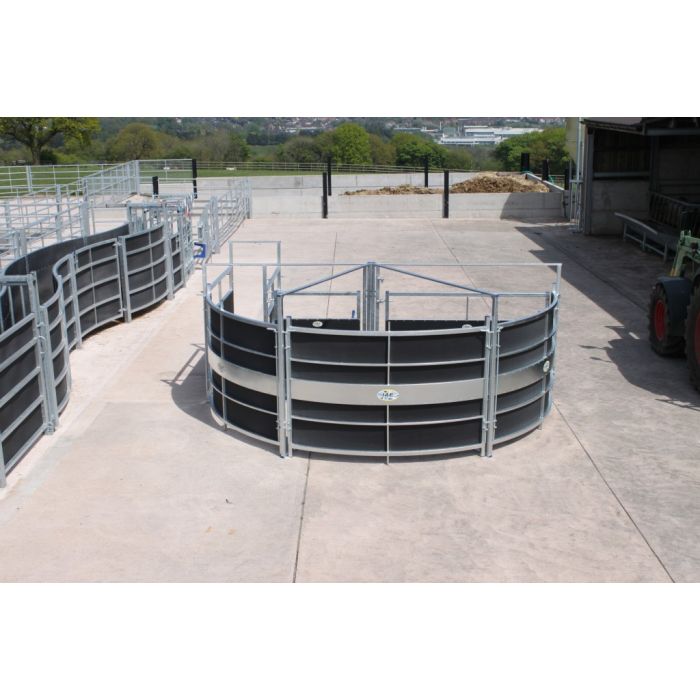

IAE Rotex® Portable Cattle Handling System is an easy and superbly convenient way of handling cattle. Semi-circular crowding/forcing areas encompass the most modern ideas and theories in animal welfare and operative safety. The Rotex® system is extremely portable, quickly assembled, and safe whilst on the move due to the bespoke transport crate.

FEATURES

• Gates and hurdles in race section have open space for increased animal visibility
• 5000mm nominal diameter forcing area
• Fully clad outer radius hurdles (clad with stockboard)
• Special lever operated bolt with noise reducing rubber buffers
• UNIQUE continuous central locking ratchet plates allow continuous forcing around the system with no interruptions at panel joins, yet still retain the ‘non-return’ safety feature
• Ratchet strap for transporting supplied
• Supplied in its own bespoke crate
• Crate has 3 point linkage and pallet fork lifting points

COMPRISES OF

• 1 x forcing gate with special lever operated bolt with noise reduction buffers and viewing gap
• 3 x radius panels with central locking ratchet plates
• 1 x frame with exit gate
• 3 x support arches
• 2 x 2400mm hurdles with viewing gaps
• 13 x coupling rods
• 1 x purpose built crate for easy storage and handling with 3 point linkage and pallet fork lifting points

Full step by step assembly instructions are supplied. Rotex® is supplied on a crate with items ready to erect in sequence. No need to unload first.
